Plan: 24 Cylinder In-line Radial Engine

59,00

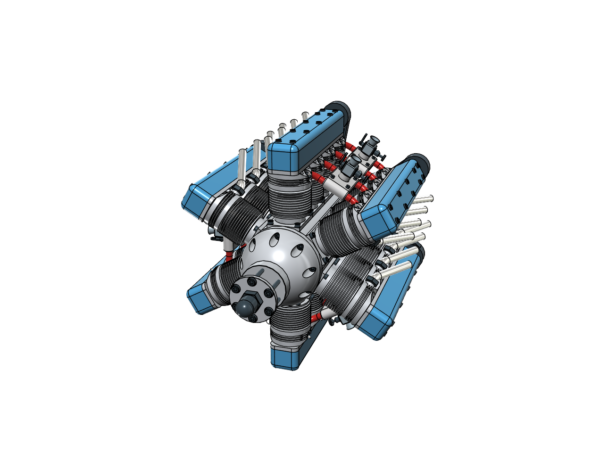

Construction plan of the 24 Cylinder In-line Radial Engine by Martin Ohrndorf.

SKU: N/A Category:

Description

Order the construction plans for your replica of the 24-cylinder in-line radial engine here!

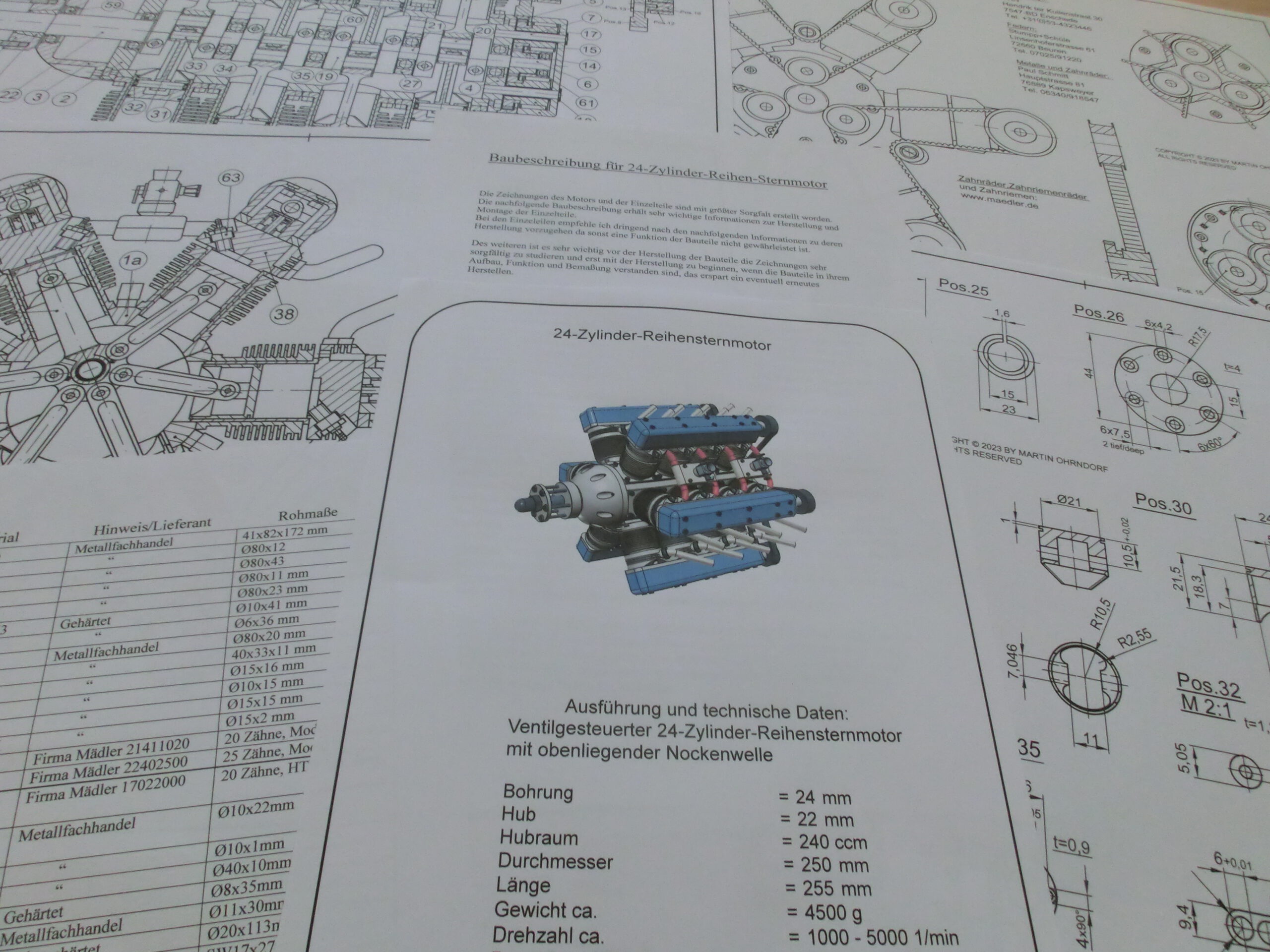

The construction plan consists of 8 sheets in DIN-A3 format, 3 sheets in DIN-A4 format and 3 sheets in DIN-A3 format showing the engine in view or in section.

There is also a six-page construction description in DIN A4 format. Parts lists of all parts are also included.

In addition, the addresses of suppliers of ball bearings, gear wheels, timing belts and valve springs, for example, are also listed.

The plan is very precise and shows all components in a comprehensible form. A turning and milling machine is required for production.

Technical data of the engine

Bore 24 mm
Stroke 22 mm
Displacement 240 cc
Weight approx. 4500 g
Revolutions approx. 1000 – 5000 1/min.
Outer diameter approx. 250 mm
Width approx.
Height approx.
Length approx. 255 mm
Propeller size up to approx. 32×8” to 36×10”

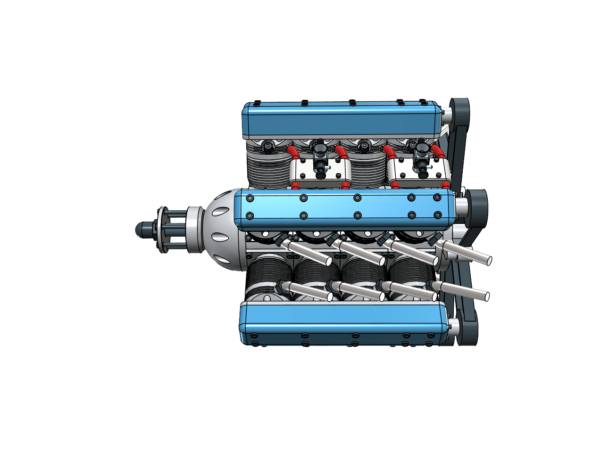

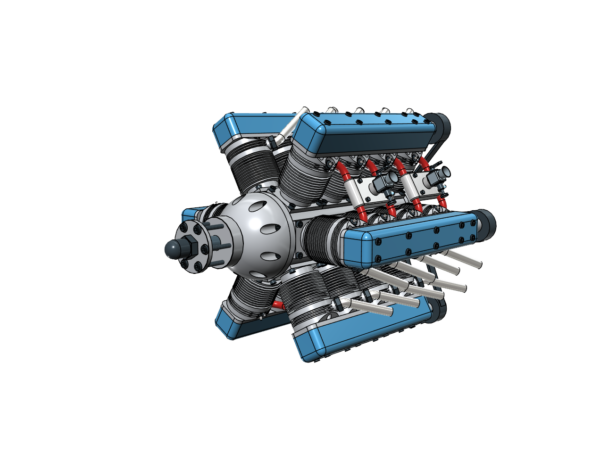

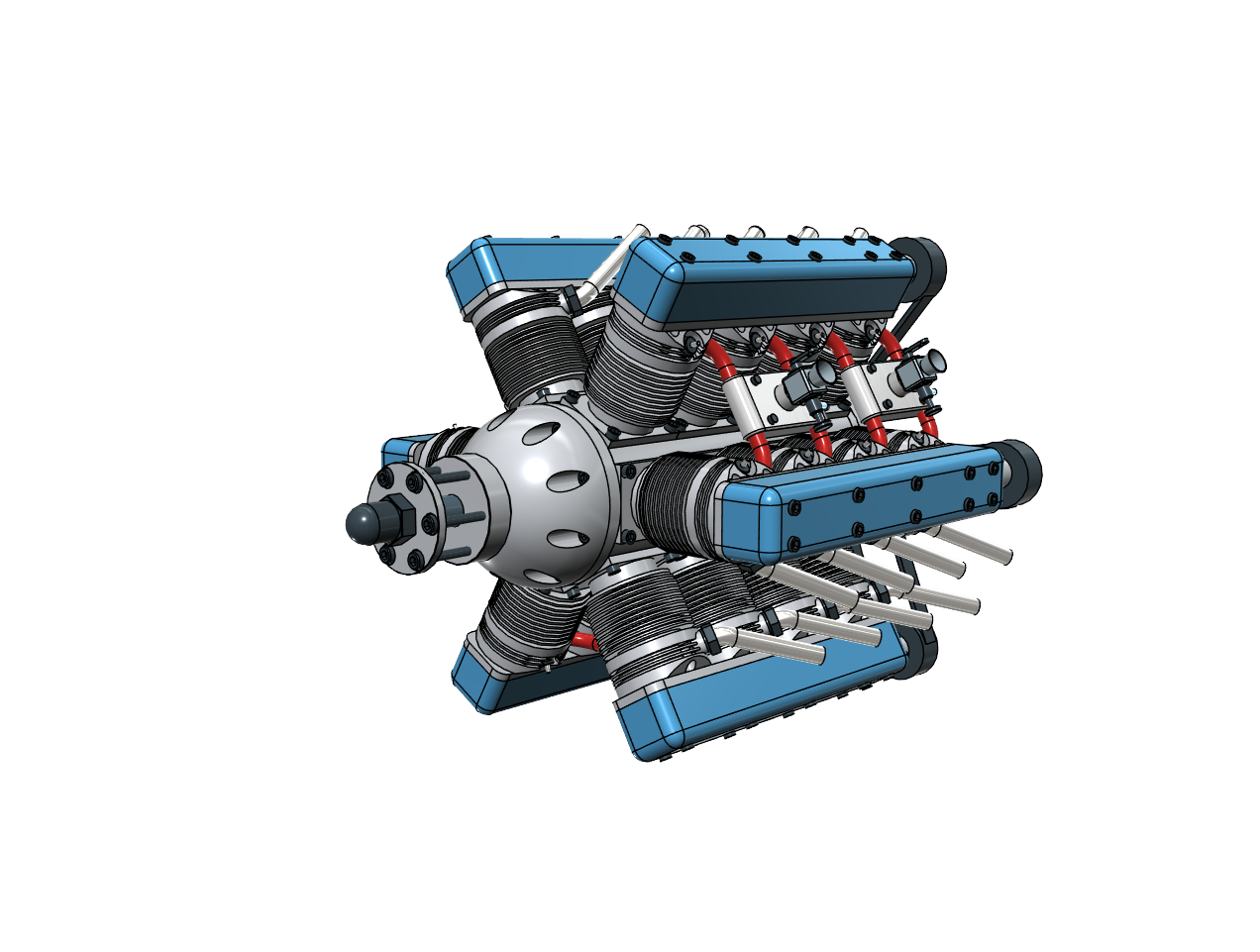

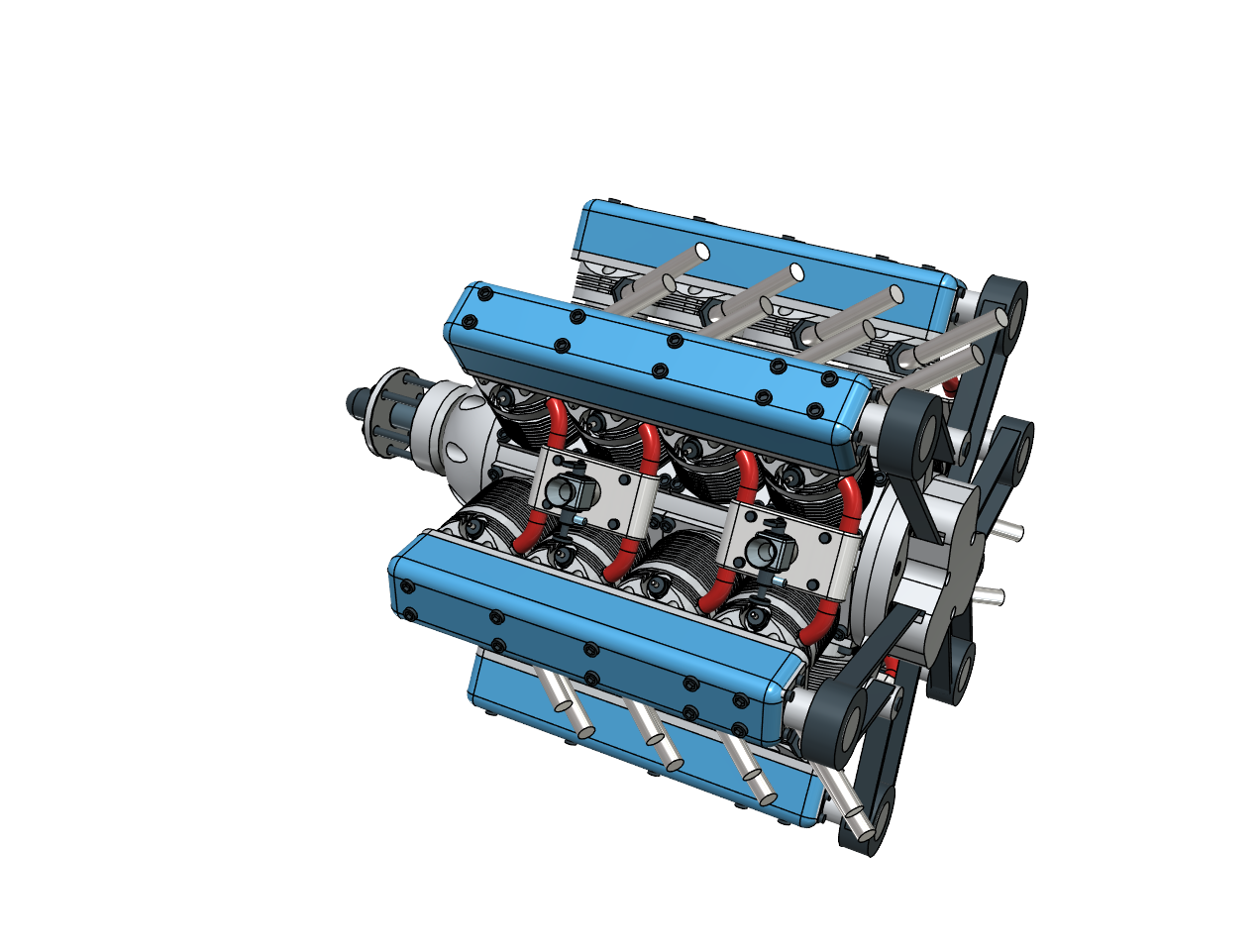

The engine is a 24-cylinder 4-stroke in-line radial engine that was developed entirely in-house. Apart from the carburetors, no individual parts from other engines were used. The engine is an air-cooled glow engine and works with mixed lubrication (methanol and synthetic oil).

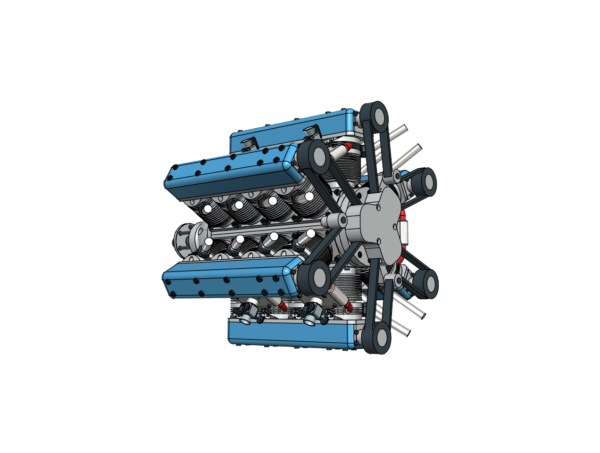

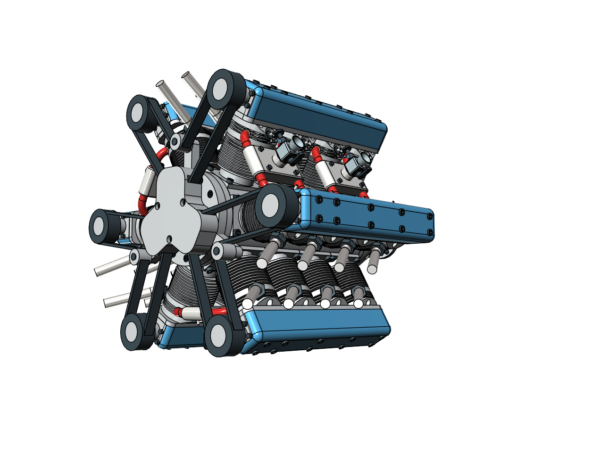

It is not based on any particular model. The engine has overhead camshafts that are driven by timing belts.
